Product Overview

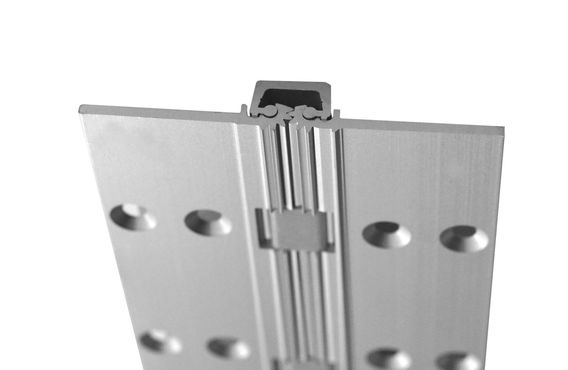

This is a full concealed, heavy duty, aluminum continuous gear hinge designed for use on the Kawneer "Tuffline"* aluminum doors. No door inset, flush mount. Fire rated for use on metal swing type doors rated up to 90 minutes and wood swing type doors up to 60 minutes. Continuous hinges alleviate most common alignment problems. (*Registered)
Specifications
- Door Thickness1-3/4" (44 mm)
- Fasteners12-24ea 7/8" undercut self-drilling, thread forming tek machine screws
- HandNon-Handed
- Hinge TypeContinuous Hinge
- Mounting StyleFlush
- Rated Opening CompliantYes
- SeriesA150 Aluminum Continuous Gear Hinges, Full Mortise
- Unit of MeasureEach
- Weight7
