Product Overview

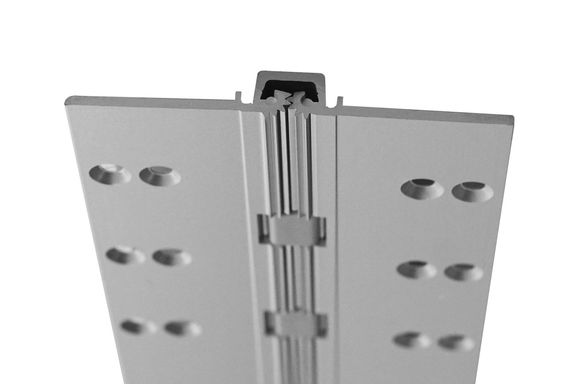

This is a full concealed, heavy duty, aluminum continuous gear hinge. Used on frames with Snap-On Trim - No Reveal. For use on 1-3/4" thick door. continuous frame reinforcement required - provided by frame manufacturer. Fire rated for use on metal swing type doors rated up to 90 minutes and wood swing type doors up to 60 minutes. Continuous hinges alleviate most common alignment problems.
Specifications
- Door Thickness1-3/4" (44 mm)
- Fasteners12-24ea 7/8" undercut self-drilling, thread forming tek machine screws
- HandNon-Handed
- Hinge TypeContinuous Hinge
- Rated Opening CompliantYes
- SeriesA280 Aluminum Continuous Gear Hinges, Full Mortise
- Unit of MeasureEach
- Weight7
