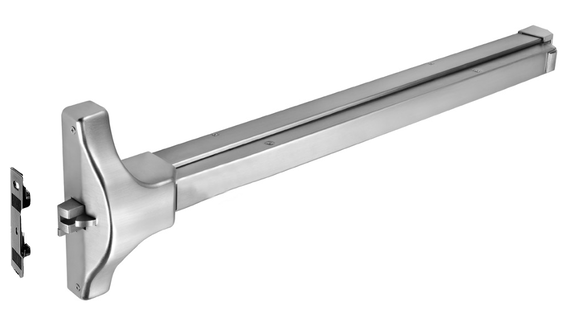

Accentra (Yale) 2100 Series SquareBolt Exit Device, Grade 1

SKU:YAL 2150

$508.22-$740.60
Reset Selections
Product Overview
Providing a higher standard of ANSI/BHMA Grade 1 performance, the 2100 series exit device is the right choice for meeting the rigors of everyday use. In addition to traditional painted finishes, the 2100 Series is available in an attractive satin stainless steel finish for use where aesthetics are also important. Non-handed for easy installation. Featuring unique free wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism. ISO 9001: Designed and manufactured under a certified ISO 9001 quality system. Designed for wide stile doors. Steel interlock bracket maintains door-to-mullion relationship in fire-labeled devices. The SquareBolt's design presents an improved physical barrier over standard rim latchbolts. The SquareBolt exit device locks into place and stays there.
Warranty Information

3 Years Limited

Specifications
  • ActionSurface applied; single-point latching
  • ADA CompliantNo
  • ApplicationSingle swing doors or pairs of doors (mullion required)
  • Bolt1" (25mm) slide projection bolt
  • Bolt Throw Length3/4" (19mm)
  • Country of OriginUSA
  • Device TypePanic Device
  • Dogging OptionsHex Key Dogging/Less Dogging on Fire Rated
  • Door Height84-96" (84" max for WS device)
  • Door MaterialMetal, Wood or Composite
  • Door Thickness1-3/4" (44 mm)
  • Duty Weight/ClassStandard Duty
  • FunctionSquareBolt Rim Exit Device. Exit Only.
  • GradeGrade 1
  • HandNon-Handed
  • IncludesMachine screws and wood door fasteners for panic hardware. Sex nuts and bolts for fire exit hardware.
  • Projection2-1/2" (64 mm) Active x 1-3/4" (44 mm) Depressed
  • Rated Opening CompliantYes
  • SeriesAccentra 2100 Series Exit Devices
  • StandardsANSI/BHMA A156.3 Type 1 or 28
  • Stiles4-1/2" (114 mm) Minimum Width
  • Strike Number757F
  • TypeFlat Bar
  • Unit of MeasureEach
  • Use With121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim
