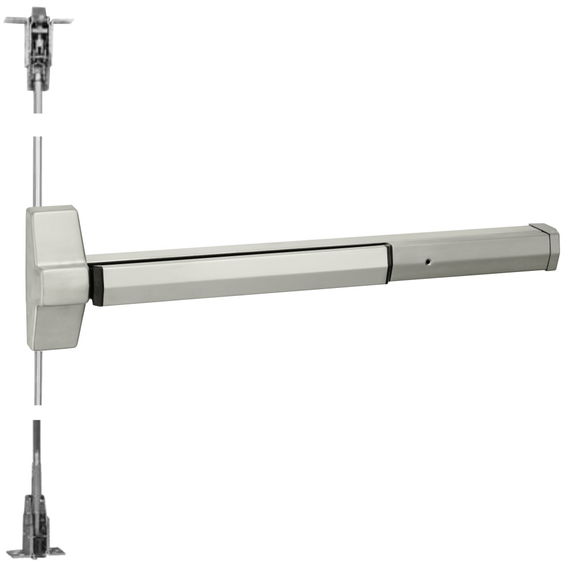

Accentra (Yale) 7160 Series Architectural Concealed Vertical Rod Exit Device

SKU:YAL 7160

$1,363.12-$4,000.47
Reset Selections
Product Overview
Accentra (Yale) 7000 series exit devices deliver an unparalleled combination of durability, innovation and aesthetics. With ANSI/BHMA Grade 1 certification and a full range of mechanical and electromechanical functions and accessories, the 7000 series can be easily integrated into existing security or fire alarm systems to ensure the safety of every opening. The simple, clean lines and variety of available finishes suit the modern decor of any commercial building. Sleek design with clean lines offers a modern look. Fire rated items are UL/cUL listed for use on fire doors having a rating up to and including 3-hours unless otherwise noted. Featuring unique free wheeling lever mechanism that allows the lever to rotate freely even when securely locked, increasing security and preventing vandalism.
Warranty Information

5 Years Limited

Specifications
  • ADA CompliantYes
  • Additional InformationDesigned for wide stile and flush doors
  • ApplicationPairs of Doors; Double Egress
  • Bolt Throw Length3/4" (19mm) Top, 5/8" (16mm) Bottom
  • Country of OriginUSA
  • Door HeightUp to 10'
  • Door MaterialWood or Metal Doors
  • Door Thickness1-3/4" (44 mm)
  • Duty Weight/ClassHeavy Duty
  • FastenersIncluded
  • Fire RatedNon Rated
  • FunctionConcealed Vertical Rod Exit Device
  • GradeGrade 1
  • HandField Reversible
  • Projection3-1/4" (83 mm) Active x 2-/1/2" ( mm) Dogged
  • SeriesAccentra 7000 Series Exit Devices
  • StandardsANSI/BHMA A156.3 Type 7 & 8
  • Stiles4-1/2" (114 mm) Minimum Width
  • Strike BottomFlush Mounted 790
  • Strike TopMortised 761
  • Trimnot included
  • TypeWide Stile Pushpad
  • Unit of MeasureEach
