Product Overview

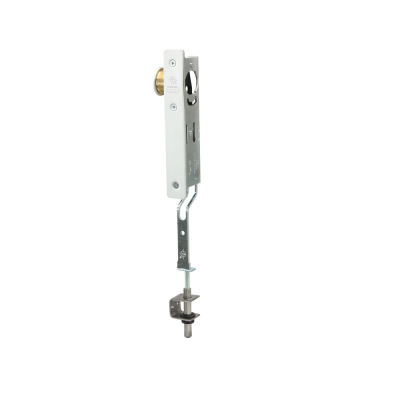

Designed for greater key control, the 1870 Cylinder Operated Flush Bolt prevents accidental locking of the inactive leaf of narrow stile aluminum paired doors. Designed for use instead of conventional flip-lever operated flushbolts, 1870HM Cylinder-Operated Flushbolts give building management key control of the inactive leaf of paired aluminum doors. Prevents casual locking of the inactive leaf by unauthorized persons. Recommended for installation at both top and bottom of inactive door with MS1850SN MS Deadlock in active door for greatest security. May be installed to lock at threshold or at header.
Warranty Information
3 Years Limited
Specifications
- Action360 degree turn of key throws or retracts the hex-section bolt
- ApplicationSwinging Doors
- BoltStainless Steel, Hexagonal 3/8" (9.5 mm) Flat to Flat
- Bolt Throw Length11/16" (17.5mm)
- Country of OriginChina
- Cylindernot included
- Device LengthStandard Length (Cylinder Center to Retracted Bolt Tip) is 12" with +/- 1-1/4" Adjustment
- Device TypeCylinder Operated
- Door MaterialAluminum

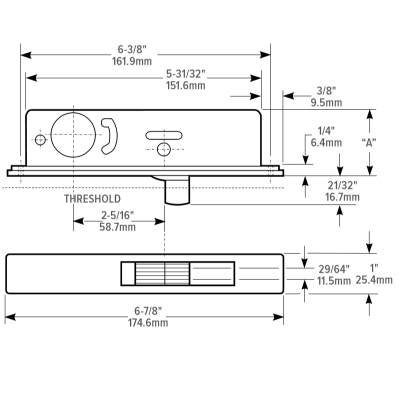

- Faceplate Size1" x 6-7/8" (25.4mm x 174.6mm)
- IncludesFlushlock Mechanism, Actuator Arm, Rod/Bolt Assembly, Stainless Steel Bolt Guide, Mounting Screws, Instructions
- MaterialSteel Case
- Rust InhibitorCorrosion-Resistant Plating
- SeriesAdams Rite 1870 Series Flush Bolts
- Strike1/2" Diameter Hole in Metal Threshold or Header is Suitable
- Unit of MeasureEach
- Weight1.25
