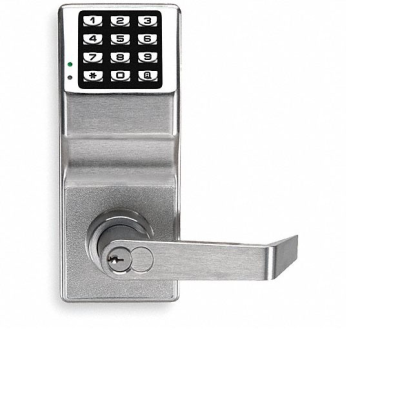

Learn MoreAlarm Lock Trilogy DL5200 Double Sided Electronic Keyless Access Cylindrical Lock, 100 Users
SKU:AL DL5200
$1,511.16-$1,534.56
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview

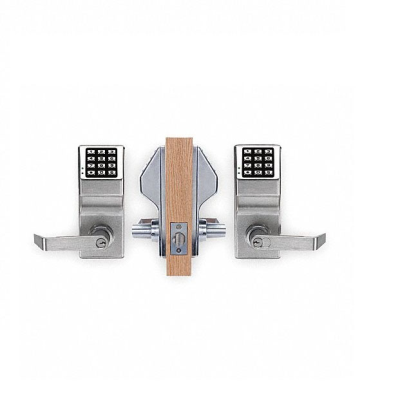

Double-sided, weatherproof Trilogy keypad door lock for keypad PIN-code access with keyless entry on two sides of door for up to 100 user access. Keypad or computer programmable. Programmable access for each user for one or both sides of the door (i.e.., each user can be allowed access to go into an area, out of an area or both ways). Up to 40,000 event directional audit trail with time/date stamp for a printable record of door access activity by user also indicates direction of keyless entry door usage. 500 scheduled events, including 4 quick schedules for programming the 4 most common time schedules in one step. Data port for programming lock and querying audit trail is on primary side of door, along with functioning mechanical key override. Smart, standalone keypad door lock is long-life battery operated; uses 5 AA batteries; 80,000 cycles, typical. (Key-controlled chamber on secondary side).
Resources
Specifications
- ADA CompliantYes
- ApplicationIdeal for community pool gates, courtyard gates, airport jet bridge doors, communicating doors, interrogation rooms plus psych and Alzheimer areas
- Backset2-3/4" (70mm)
- Battery5 AA Alkaline Batteries, Included
- BoltSolid Brass, Deadlocking
- Bolt Throw Length1/2" (13mm)
- Device TypeWeatherproof for Exterior Use
- Door Thickness1-5/8 In. to 1-7/8 In.
- Faceplate Size1-1/8" x 2-1/4"
- Fire Rated180 Min
- FunctionElectronic Keyless Access, Stand Alone
- GradeGrade 1
- HandNon-Handed
- Handle TypeLever
- Keypad Type12 Button Programmable
- KeysAll metal
- LightsLED
- Lock Prep161 Prep
- MaterialBrass/Bronze Base
- Number of Users100
- Operating Temperature-31-151 deg F (-35-66 deg C)
- PowerBattery
- Programmer/ProgrammingKeypad or PC programmable
- Rated Opening CompliantYes
- Reader TechnologyKeypad Only
- StandardsUL10C Listed, FCC
- Strike1-1/8" x 2-3/4" T Strike and 1-1/4" x 4-7/8" ASA Strike Included
- Through BoltsYes
- TypeCylindrical Lock
- Unit of MeasureEach
- Weight9
