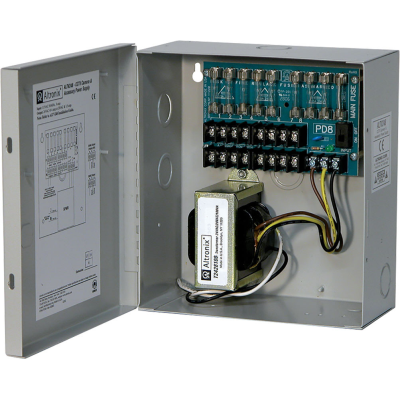

Altronix ALTV248 CCTV Power Supply, 8 Fused Outputs, 24/28VAC@4A, 115VAC
SKU:ALTV248
$199.38
$171.81
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
Altronix ALTV248 AC wall mount CCTV power supply provides 24VAC or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV cameras, heaters and other video accessories. 24 VAC @ 4 A (100 VA) supply current (1 A per device, 3.5 A max) or 28 VAC @ 3.5 A (100 VA) supply current (0.875 A per device, 3.5 A max). Surge suppression. Secondary fuse rated @ 5 A/250 V.
Warranty Information
Limited Lifetime
Specifications
- ColorGray
- Country of OriginUSA
- Depth3.5"
- Device TypeCCTV Power Supply
- Electric Options8 Outputs
- Height8.5"
- IncludesLine Cord, Spare Fuse
- Input Current0.9 A
- MaterialSteel
- Operating Temperature32-120 deg F (0-49 deg C) with Relative Humidity 85 +/- 5 percent
- Operating Voltage115 VAC Input; 24/28 VAC Output
- Output Current4 A/3.5 A
- Size1/2" x 3/4" Knockout
- StandardsRoHS, CE
- Unit of MeasureEach
- Weight7
- Width7.5"
