Learn MoreProduct Overview

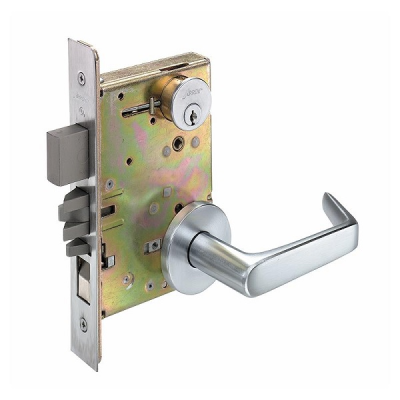

Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.
Resources
Warranty Information
5 Years Limited
Specifications
- ADA CompliantYes
- ApplicationFor use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.
- Backset2-3/4" (70 mm)
- Bolt2-pc Latchbolt, 1-pc Deadbolt
- Bolt Throw Length3/4" (19mm) Latchbolt, 1" (25.5mm) Deadbolt
- CylinderNot included
- Device Length4-3/4" L Handle
- Door Thickness1-3/4"
- Duty Weight/ClassHeavy Duty
- Fire RatedNo

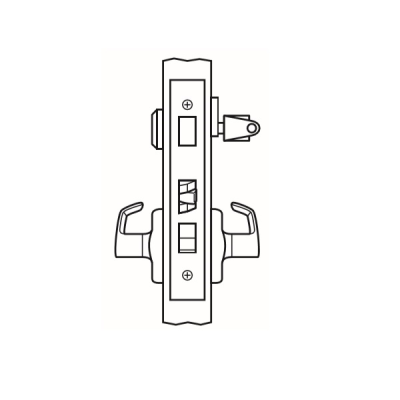

- FunctionApartment/Front Door
- GradeGrade 1
- HandField Reversible
- Handle TypeLever
- IncludesMounting Hardware
- Lock Face Size8" x 1-1/4"
- Metric Size149mmH x 102mmL x 24mmD Lockcase
- Rated Opening CompliantYes
- ScrewsCombination
- SeriesAM/BM Series Mortise Locks
- Size5-7/8"H x 4"L x 15/16"D Lockcase
- StandardsANSI A156.13
- Strike Height4-7/8"
- Strike Number463
- Strike TypeASA
- Strike Width1-1/8"
- Through BoltsYes
- Unit of MeasureEach
- Weight6
