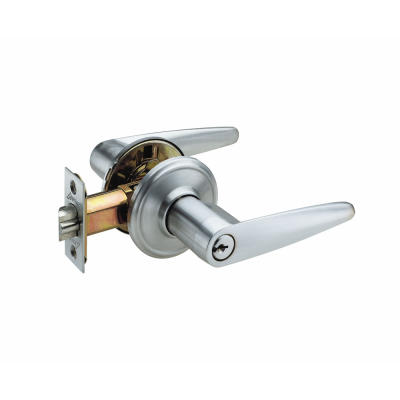

Arrow C Series Cylindrical Lockset, Entrance Function
SKU:CL11-SC-26D
Was:$108.00
Now:$64.80
Out of stock
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
Combining a variety of knob and lever designs, convenient installation and the Arrow benchmark for dependability, the Arrow C Series is perfect in most any space. It is constructed with a tubular chassis and meets the requirements of ANSI, A156.2, Series 4000, Grade 2. Supplied with three faceplates, (1) 1" x 2-1/4" square corner, (2) 1" x 2-1/4"" radius corner, (3) 1-1/8" x 2-1/4" square corner.
Resources
Warranty Information
5 Years Limited
Specifications
- ADA CompliantYes
- ApplicationFor use in single and multi-family homes and light commercial spaces.
- Backset2-3/8" x 2-3/4" Adjustable
- Device Length4-1/4" L Handle
- Door Thickness1-3/8 - 1-3/4"
- Face ShapeSquare corner and radius corner provided
- Faceplate Height2-1/4"
- Faceplate Width1" and 1-1/8"
- Fire RatedNo
- FunctionEntrance
- GradeGrade 2
- HandField Reversible
- Handle TypeLever
- Mounting StyleConcealed screws on inside rose
- Projection2-1/2"
- Rated Opening CompliantNo
- Rose/Escutcheon Size2-1/2"
- ScrewsCombination
- SeriesC Series Residential Locks
- StandardsANSI A156.2
- Strike Height2-1/4"
- Strike Number502
- Strike TypeFull lip strike
- Strike Width1-5/8"
- TypeTubular Lock
- Unit of MeasureEach
- Weight1.5
