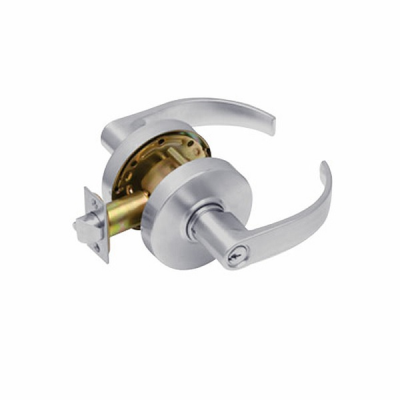

Product Overview
The RL Series has been enhanced to offer removable through bolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications. Cold rolled steel with zinc dichromate finish for corrosion resistance. The RL Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL listed for use on 3 hour, "A" label single swinging doors. Standard 161 prep for retrofit and secure installation.
Warranty Information
5 Years Limited
Specifications

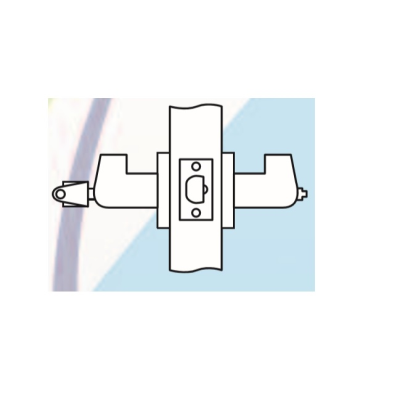

- ActionPush and turn button inside, key outside
- ADA CompliantYes
- Additional InformationGuarded Latchbolt on All Locking Functions
- Backset2-3/4" (70 mm)
- BoltBrass Latchbolt
- Bolt Throw Length1/2" (13mm)
- Country of OriginTaiwan
- Door MaterialWood or Metal
- Door Thickness1-3/8 to 1-3/4" (34.93 to 44.45 mm) Standard
- Fire RatedNo
- FunctionEntrance
- GradeGrade 2
- HandNon-Handed
- IncludesMounting Hardware
- Latch NumberR71
- Latch TypeDeadlatch
- Length4-3/4" (120.65 mm) Lever
- Lock Face Size2-1/4" x 1-1/8"
- Lock Prep161 Prep
- MaterialPressure Cast Zinc Lever, Wrought Brass Rose
- Mounting StyleRequires Standard 2-1/8" (53.97 mm) Bore Through Door
- Projection2-7/16" (61.91 mm) Lever
- Rated Opening CompliantYes
- Rose/Escutcheon Size3-5/16" (84.13 mm)
- ScrewsWood and machine screws included
- SeriesArrow RL Series Cylindrical Lever Locks
- StandardsANSI/BHMA A156.2 Series 4000, UL Listed Latch
- Strike Height4-7/8" (123.83 mm)
- Strike NumberR62
- Strike Size1-1/4" (31.75 mm) Lip to Center Dimension
- Strike StandardANSI 115.2
- Strike TypeANSI Strike
- Strike Width1-1/4"
- Through BoltsYes
- Unit of MeasureEach
- Weight3.4
