Product Overview

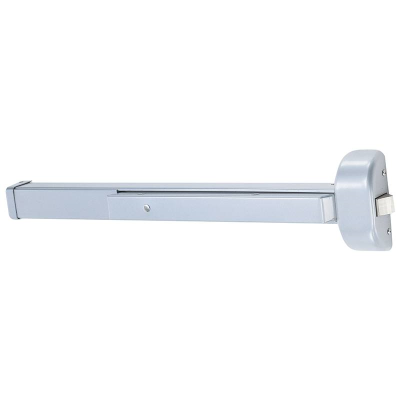

The Arrow S1250 Rim Exit Device offers a reliable and dependable solution at a price you can afford. Underwriters laboratories (UL and CUL) listed for accident hazard (panic) standard.
Resources
Specifications
- ActionPush Bar Exit
- ADA CompliantYes
- BoltStainless Steel
- Bolt Throw Length3/4" (19mm)
- Country of OriginUSA
- Device TypeWide Stile Pushpad
- Dogging OptionsHex Key Dogging
- Door MaterialWood or Hollow Metal
- Door Thickness1-3/4"
- Duty Weight/ClassHeavy Duty
- Fire RatedNo
- FunctionUniversal Mechanical Function
- GradeGrade 1
- HandNon-Handed
- MaterialChassis and cover are non-ferrous alloy, metal endcaps
- Rated Opening CompliantNo
- SeriesArrow S1150 and S1250 Series Exit Devices
- StandardsANSI/BHMA A156.3, ANSI A117.1
- Stiles4-1/2" minimum
- Strike Height3-3/8"

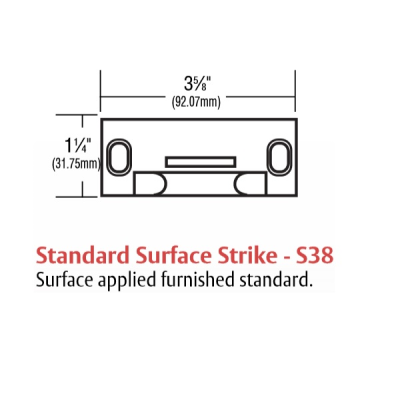

- Strike NumberS38
- Strike Width1-1/4"
- Trimnot included
- TypeRim
- Unit of MeasureEach
