Product Overview

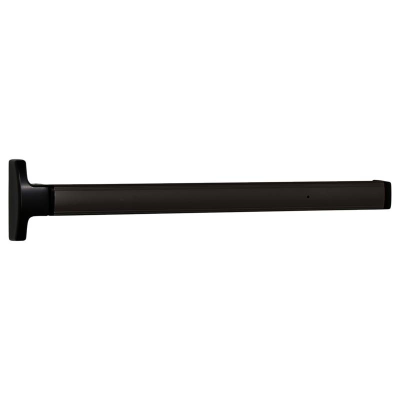

The 1690/1790 Series narrow stile touch bar exit devices provide safe and reliable egress that is ideal for aluminum doors. Both series are certified ANSI/BHMA A156.3 Grade 1 products and boast a 10-year limited warranty.
The 1690 Series design is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring ideal operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 Series may also be used to retrofit a 1990 Series crossbar device.
Resources
Warranty Information
10 Years Limited
Specifications
- ApplicationInterior or Exterior Doors
- Device TypeConcealed Vertical Rod
- Dogging OptionsHex Key Dogging
- Door Height84"
- Door MaterialAluminum or Hollow Metal
- Door Thickness1-3/4"
- Duty Weight/ClassMedium Duty
- FastenersAll machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
- Fire RatedNon Rated
- GradeGrade 1
- HandField Reversible
- HeightPushbar 2-1/2"H
- IncludesBlack powder-coated metal end caps.
- Latch TypeStandard Top (SU Latch) / Standard Bottom - Hex Bottom Bolt
- Length7' Vertical Rods
- Mounting StyleConcealed
- Projection3-3/8" maximum, 2-3/8" when dogged
- Rated Opening CompliantNo
- SeriesFalcon 1690 Series Exit Devices
- StandardsANSI A156.3
- Stiles1-3/4" Minimum
- StrikePacked with three 0.050" thick shims
- Strike Size1-1/16" x 1-1/16" x 7/16" (HxWxD)
- Strike TopPB48
- TypeNarrow Stile Pushpad
- Unit of MeasureEach
