Product Overview

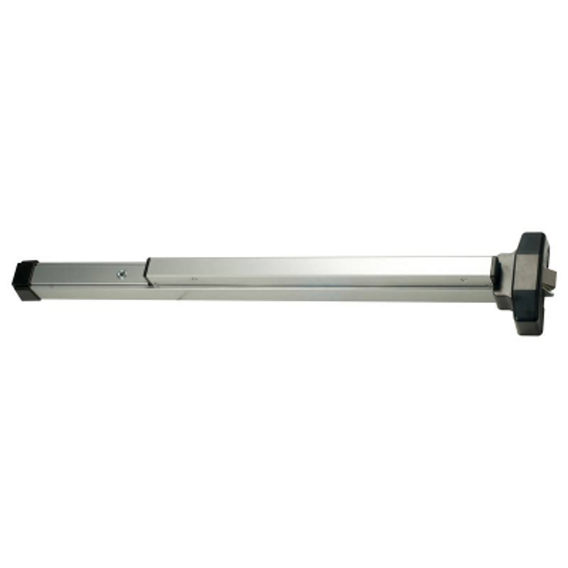

The 19 Series narrow stile exit devices provide value and dependability on light to medium-duty door applications. They can be mounted on interior or exterior single or double doors, where traffic is not consistently heavy. Ideal for commercial, multi-family, office, retail and other medium-traffic installations. A certified ANSI/BHMA A156.3-2001 Grade 1 exit device, they are non-handed and cover a 161 door prep.
Warranty Information
10 Years Limited
Specifications
- ApplicationInterior or Exterior Doors
- BoltStainless Steel Latchbolt
- Bolt Throw Length3/4"
- Device TypeRim
- Door MaterialAluminum or Hollow Metal
- Door Thickness1-3/4"
- Duty Weight/ClassMedium Duty
- FastenersAll machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.
- Fire RatedNon Rated
- GradeGrade 1
- HeightPushbar 1-3/4"H
- IncludesBlack plastic end caps
- Projection2-1/2" maximum, 1-7/8" when dogged
- Rated Opening CompliantNo
- SeriesFalcon 19 Series Exit Devices
- StandardsANSI A156.3
- Stiles1-3/4" Minimum
- Strike NumberF570
- Strike Size2-5/8" x 1-1/4" x 1-13/16" (HxWxD)
- TypeNarrow Stile Crossbar
- Unit of MeasureEach
