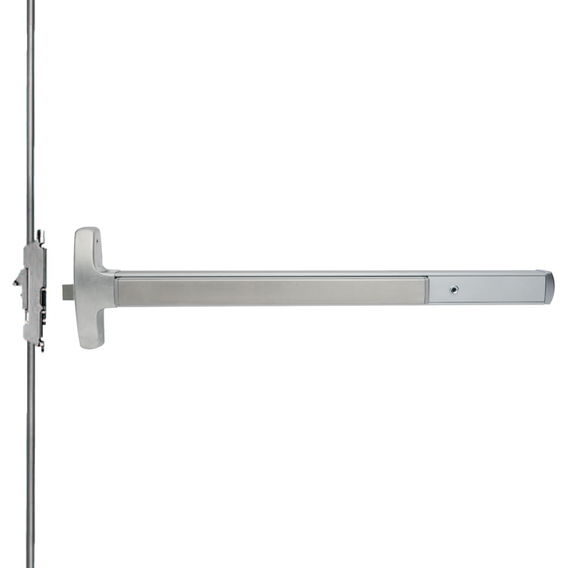

Learn MoreFalcon 24 Series Concealed Vertical Rod Electronic Exit Device, Panic
SKU:FAL EL-24-C
$1,624.53-$2,600.75
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 Series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA Grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. Extruded aluminum construction delivers greater strength and impact resistance. No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation. One trim input design provides maximum versatility and ability to use various trims. Stainless steel push pad cover provides a scratch-resistant pushing surface. Flush-end caps help prevent them from being destroyed or knocked off in abusive situations. Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors. **Aditional options may be available, inquire via chat**
Warranty Information
1 Year Limited
Specifications
- ApplicationInterior or Exterior Doors
- BoltStainless Steel Latchbolt
- Bolt Throw Length3/4"
- CylinderNOT Included
- Device TypeRim
- Dogging OptionsHex Key Dogging
- Door MaterialWood or Metal
- Door Thickness1-3/4"
- Duty Weight/ClassHeavy Duty
- FastenersAll mounting screws are concealed
- Fire RatedNon Rated
- GradeGrade 1
- MaterialCenter case is heavy wrought and sintered metal parts
- Mounting Location40" from CL to finished floor
- Projection2-3/4" maximum, 2" when dogged
- Rated Opening CompliantNo
- SeriesFalcon 24/25 Series Exit Devices
- StandardsANSI 156.3-2001
- Stiles2-1/4" Minimum (3-1/2" Standard)
- Strike Number299
- Strike Size2-7/8"H x 1-1/4"W x 13/16"D
- TypeNarrow Stile Pushpad
- Unit of MeasureEach
