Product Overview

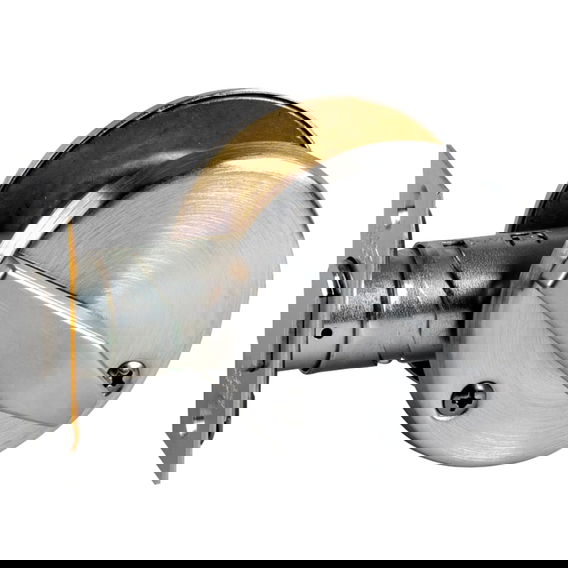

Deadbolt locks provide an extra measure of protection against break-in when used as a supplement to an existing lockset. In applications ranging from military and government projects to multi-family housing, retail and restaurants, Falcon deadbolts deliver superior performance and the flexibility of multiple keying systems. Integrated anti-pry shield behind cylinder assembly for added security and quicker installation. Integrated trim design means fewer pieces out of the box and improved installation time. Tapered front resists wrenching. Adjustable backset with lock-in-place design for greater versatility. Heavy duty, high strength steel, saw-resistant bolt with spinning hardened steel pin inside for additional protection.
Resources
Warranty Information
10 Years Limited
Specifications
- ActionDeadbolt thrown or retracted by turn unit from either side. Bolt automatically deadlocks when fully thrown.
- ADA CompliantYes
- ApplicationShelters
- Backset2-3/8" or 2-3/4" (adjustable)
- BoltSteel, saw resistant
- Bolt Throw Length1"
- Door MaterialWood or Metal
- Door Thickness1-3/8" - 2-1/4"
- Dust BoxMetal / Included
- Duty Weight/ClassMedium Duty
- Faceplate Size2-1/4" x 1-1/8"
- Fire RatedNon Rated
- FunctionDouble Thumbturn
- GradeGrade 2
- HandNon-Handed
- Handle TypeThumbturn
- Hardware FinishSatin Chromium Plated 626/US26D
- KeywayNon-Keyed
- Rated Opening CompliantNo
- Screwswood/machine included
- SeriesFalcon D-200 Series Deadbolts
- StandardsANSI/BHMA A156.5,2001
- StrikeSquare corner, lipless
- Strike Height2-3/4"
- Strike Number10-094
- Strike Width1-1/8"
- ThumbturnYes
- Unit of MeasureEach
