Product Overview
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Reversible handing without opening lock chassis case. All lever designs meet ADA requirements. Solid brass cylinder and plug. 1" stainless steel deadbolt with security roller pins and two-piece stainless steel anti-friction latch bolt. UL listed 3-hour fire door, A label. **Additional options may be available, inquire via chat.
Warranty Information
1 Year Limited
Specifications

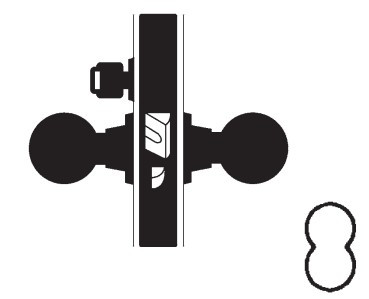

- ActionLatch bolt operated by lever from either side except when outer lever is electrically unlocked. When outer lever is locked, latch bolt retracted by key in cylinder outside. Deadlocking latch.
- ADA CompliantYes
- ApplicationFor high-traffic, high abuse locations; office, hospital, education or other commercial applications.
- Backset2-3/4"
- BoltStainless Steel
- Bolt Throw Length3/4" Latchbolt
- Door Thickness1-3/8 - 1-7/8"
- Duty Weight/ClassHeavy Duty
- Faceplate Size1-1/4" x 8"
- Failure ModeFail Secure
- Fire RatedNon Rated
- FunctionStoreroom
- GradeGrade 1
- HandNon-Handed
- Handle TypeLever
- MaterialCold-formed steel, zinc plated with dichromate for corrosion resistance
- Rated Opening CompliantYes
- SeriesFalcon MA Series Mortise Locks
- StandardsANSI/BHMA A156.13, Series 1000
- Strike Height4-7/8"
- Strike Width1-1/4"
- Through BoltsYes
- Unit of MeasureEach
- Use WithIn a wired access control system or as an independently controlled lock with a remote access switch.
