Product Overview

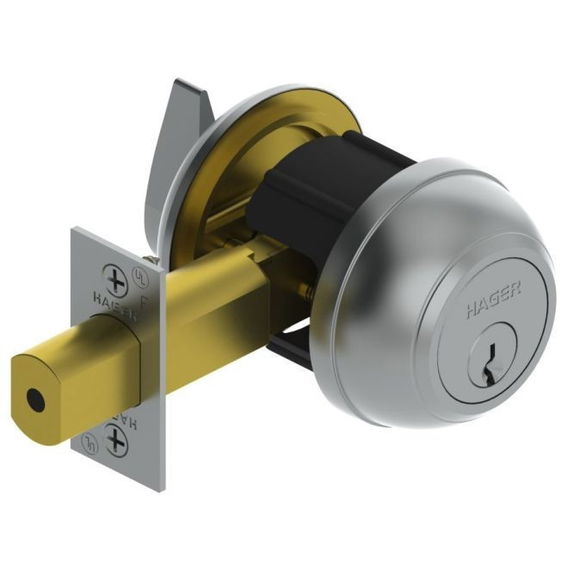

Cylinder - Thumbturn, Grade 1 deadlock with auxiliary and primary locking. Deadbolt thrown or retracted by key from outside or by thumbturn inside, bolt automatically deadlocks when fully thrown. No exposed mounting screws. UL/cUL Listed for all functions up to 3 hours "A" label single doors.
Warranty Information
Limited Lifetime
Specifications
- ADA CompliantYes
- BAA CompliantYes
- Backset2-3/4"
- BoltBrass with concealed hardened steel roller to prevent sawing or cutting
- Bolt Throw Length1" (25.5mm)
- Country of OriginTaiwan
- Door Thickness1-3/4" - 2"
- Duty Weight/ClassHeavy Duty
- Faceplate Size2-1/4" x 1-1/8" (57mm x 29mm) Square Corner
- Function15 - Cylinder x Thumbturn (ANSI E2151)
- GradeGrade 1
- HandNon-Handed
- Rated Opening CompliantYes
- Series3100 Series Deadlocks
- StandardsANSI A156.5, ANSI A250.13, UL/cUL, UL10B, UL10C
- Strike1-1/8" x 2-3/4" Square with dustbox
- Strike StandardSquare Corner Strike
- Unit of MeasureEach
- Weight2.10
