Product Overview

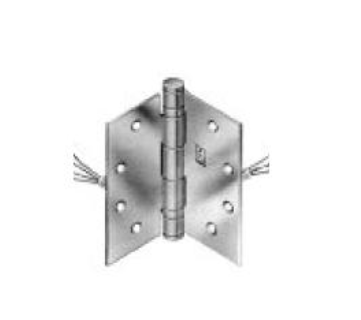

Electric hinges are designed for doors that require concealed low voltage power transfer, concealed electric monitoring or concealed low voltage power transfer with monitoring. Electric hinge must be placed in the center position only.
Warranty Information
3 Years Limited
Specifications
- ApplicationFor Medium Weight Doors or Doors Requiring Medium Frequency Service
- BAA CompliantYes
- Bearing TypeBall bearing
- Corner TypeSquare
- Country of OriginUSA
- Current Rating3.5 A Continuous, 16 A Pulse
- Duty Weight/ClassStandard Duty
- Gauge0.129 or 0.134
- Hardware FinishSatin Chromium Plated 626/US26D
- Knuckles5
- MaterialSteel with Steel Pin
- Mounting StyleFull Mortise
- Screws1/2" x #12-24 Machine, 1-1/4" x 12" Wood
- SeriesHager BB1279 Direct
- Size4.5" x 4.5"
- Sold in Pack Size3
- StandardsANSI A8112
- TypeConcealed Electric Through Wire, Commercial
- Unit of MeasureEach
- Voltage Rating50 VAC/DC
- Weight1.13
