Product Overview

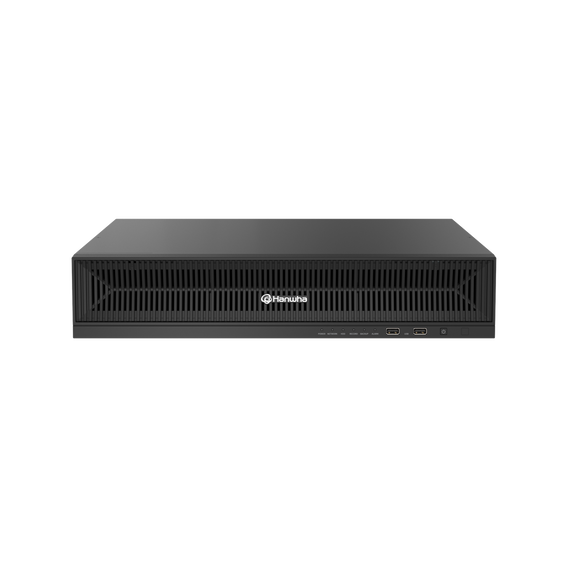

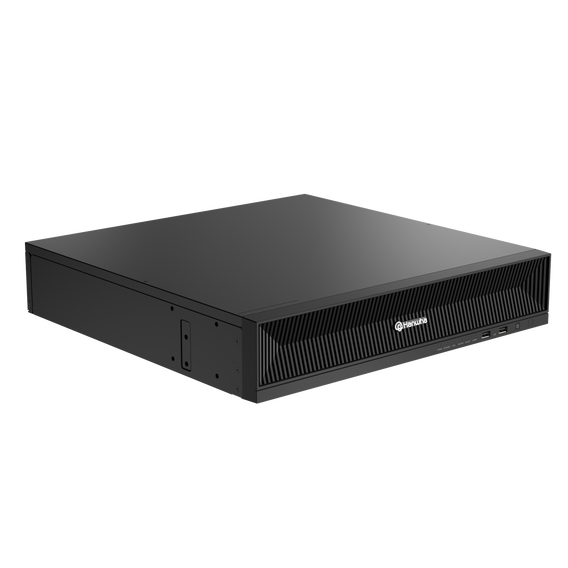

Hanwha Techwin's quick deploying Network Video Recorders provide flexibility with rack-mounted installation and desktop viewing options and reliability with options such as RAID storage and redundant power supplies.
Resources
Warranty Information
3 Years Limited
Specifications
- Additional InformationTPM Integrated
- Audio2-way communication
- ColorBlack
- Country of OriginCN
- FunctionUp to 32 channels, Supports up to 32 megapixel camera resolution
- Input Voltage100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A
- MaterialMetal
- MemoryHDD Slot: SATA 8ea (Max. 80TB) / iSCSI storage (external)
- Metric Size438 x 86 x 434.9 mm
- NDAA CompliantYes
- Number of UsersSearch(3), Live Unicast(10), Multicast(20)

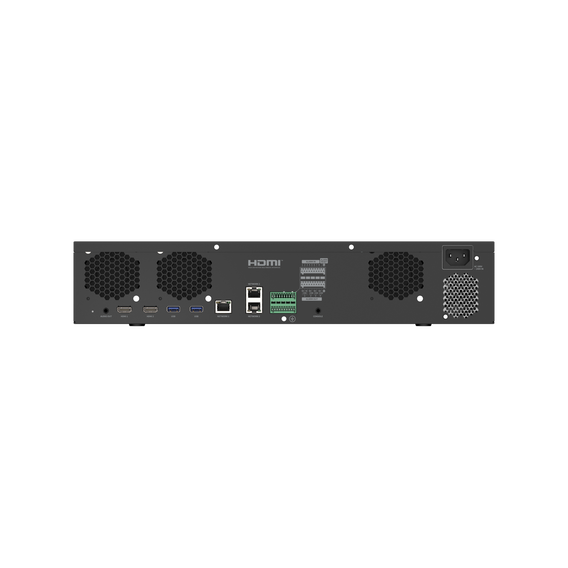

- Ports2 HDMI; 4 USB
- PowerConsumption Max. 143W (488BTU with HDD 8ea)
- Power Transfer/WiresEthernet RJ-45 3EA (LAN/WAN, 1Gbps)
- Resolution32MP
- SeriesHanwha Wisenet X Series
- Size17.24" x 3.39" x 17.12"
- SoftwareSSM, Webviewer, Wisenet Viewer, Wisenet mobile; Support CGI(SUNAPI) for integration to 3'rd party VMS
- Unit of MeasureEach
- Use WithWisenet Viewer, Wisenet mobile
- Video CompressionH.265, H.264, MJPEG
- Weight16.1lbs / 7.3kgs
