Product Overview

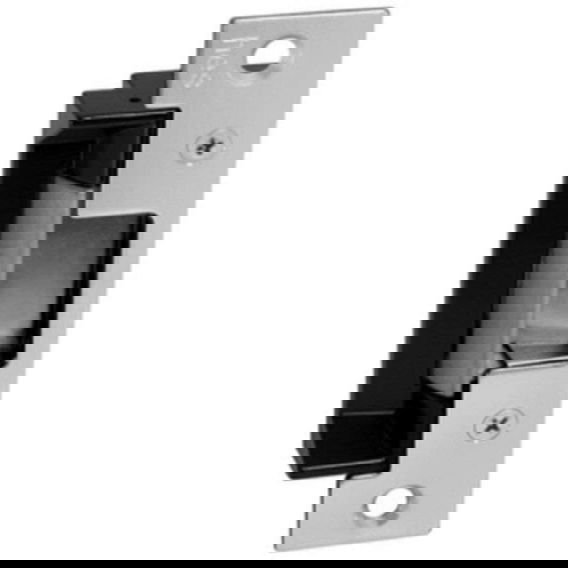

The HES 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the HES 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8 in throw from cylindrical locksets. Additional features: tamper resistant, internally mounted solenoid, plug-in connector, in frame horizontal adjustment, and accommodates 1/2"-5/8" (12.7mm-15.9mm) latchbolt (5/8" [15.9mm] with 1/8" [3.2mm] door gap).
Warranty Information
5 Years Limited
Specifications
- Additional InformationEndurance 1000000 Cycles
- Amp Draw240 mA at 12 VDC/120 mA at 24 VDC
- ApplicationIndoor / Outdoor
- BAA CompliantYes
- BoltAccommodates 1/2" to 5/8" latchbolt
- Burglar RatedYes
- Configuration/ConnectorsPlug-in Connector
- Country of OriginUSA
- Depth1-1/16" (27.3mm)
- Device TypeUniversal
- Dynamic Strength70 ft-lb
- Electric OptionsPoE Friendly
- Electrical Rating12/24 VDC/VAC Dual Voltage; Continuous Duty
- Faceplate Height4-7/8"
- Faceplate Width1-1/4"
- Failure ModeField Selectable, Fail Safe/Fail Secure
- Fire RatedNon Rated
- Frame ApplicationMetal or Wood
- GradeGrade 1
- HandNon-Handed
- Hardware FinishSatin Stainless Steel 630/US32D
- Height3-5/8" (92mm)
- MaterialStainless Steel
- PowerHardwired
- Rated Opening CompliantNo
- SeriesHES 5000 Series Electric Strikes
- StandardsANSI/BHMA A156.31, UL 1034 Burglary Resistant Listed, UL 294 Listed, RoHS Compliant
- Static Strength1500 lb
- Unit of MeasureEach
- Use WithCylindrical locksets with up to a 5/8" throw latchbolt
- Weight1.3
