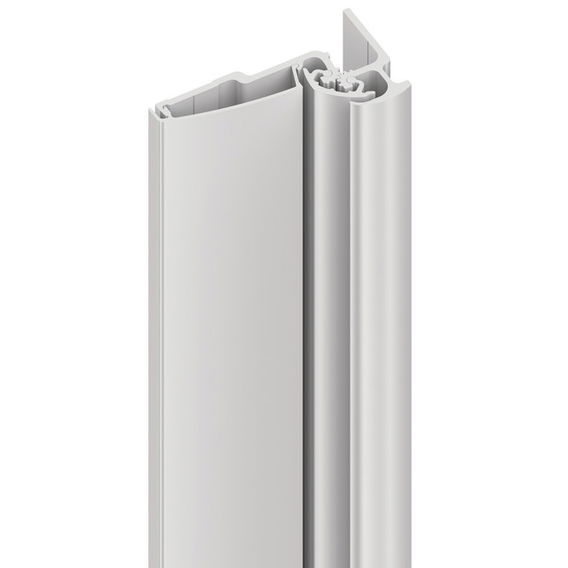

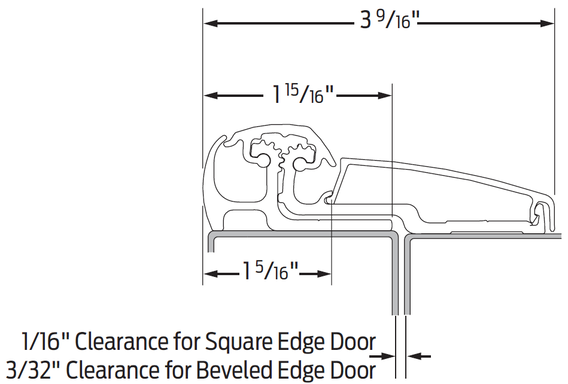

Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. Geared hinges utilize a single gear section for the leaf and a separate gear section for the frame side of the door. The two are held in place by a full-length cover channel and rotate on a series of bearings. The XY models feature lateral and vertical adjustment after the hinge is secured to door and frame, a center loaded bearing design to help reduce frame issues and has electric through-wire panel option with a continuous cover.
Warranty Information
Limited Lifetime
Specifications
- Bearing TypeContinuous Gear
- Corner TypeSquare
- DesignPatented center loaded, interlocking bearing design
- Duty Weight/ClassHeavy Duty
- EdgesBeveled or square edge doors
- GradeGrade 1
- HandNon-Handed
- Hinge TypeContinuous, Full Surface
- Includesnone
- Max. Door Weight550 lbs.
- Max. Door Width4'
- Pin Typenone
- Rated Opening CompliantTested & approved UL 10C (90 minutes)
- Screws12-24 x 3⁄4" Steel self drilling / self tapping Phillips-head screw
- SeriesIves XY Series
- StandardsANSI/BHMA 156.26
- Tip StyleStandard
- Unit of MeasureEach
