Product Overview

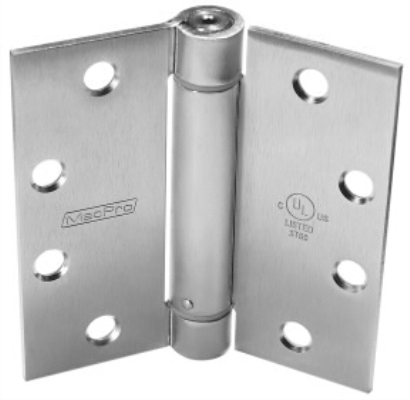

This spring hinge is recommended for standard weight, medium frequency doors in place of door closers in apartments, hotels, motels, office buildings, etc. Spring hinges are an alternative to door closing devices. Generally two hinges on the door must be spring hinges to provide adequate closing force. NFPA requires a minimum of two (2) spring hinges on labeled doors. For maximum performance it is recommended to use all spring hinges on the door. Sold in packs of 3.
Specifications
- Bearing TypeConcealed
- Corner TypeSquare
- Duty Weight/ClassStandard Duty
- FastenersMachine Screw - 1/2 x 12-24 F.H.; Wood Screw - 1-1/4 x 12 F.H
- Fire RatedNon Rated
- Gauge0.134
- GradeGrade 1
- HandNon-Handed
- Hinge TypeAdjustable Spring Hinge
- Knuckles5
- MaterialSteel
- SeriesMacPro Hinge Line
- Sold in Pack Size3
- StandardsMade to conform to ANSI/BHMA 156.1, 156.7, 156.17
- Tip StyleFlush
- TypeFull Mortise
- Unit of MeasurePack
