NGP GapGuard HP90-CYL Cylindrical Hardware Prep Filler, Fire Door Repair
SKU:HP90-CYL
$242.00
$217.80
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview

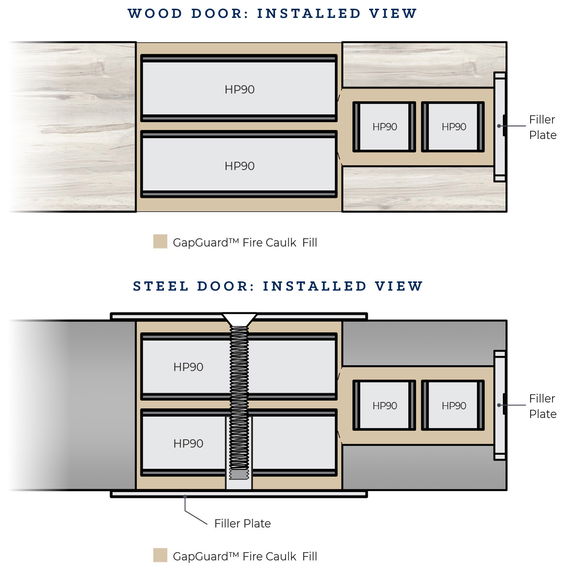

UL Certified Solution for Fire Doors When Either Removing Existing Hardware and/or Using a New Hardware Type Over Existing Hardware Prep’s.
Specifications
- DoorsHollow Metal and Wood Fire-Rated Doors – up to 90-Minute
- Fire Rated90-Minute
- FunctionCertified for Filling Cylindrical Lockset Cavities
- Hardware FinishGray Primer Powder Coat GPZ
- IncludesSteel Filler Plates: HP90-RDCP, Filler Plate, HP90-CEF1000, Edge Filler Plate, HP90-SF2750, Strike Filler Plate, HP90-SF4875, Strike Filler Plate
- MaterialSteel
- Rated Opening CompliantYes
- Screws#10-32×1-3/4" FHPH SS machine screw, #8×3/4" FHPH SS combo screw, #12×1" FHPH SS combo screw, #8×3/4" FHPH SS SMS, #12×1" FHPH SS SMS
- StandardsANSI/UL10B, complies with NFPA 80 and NFPA 252
- Unit of MeasureEach
