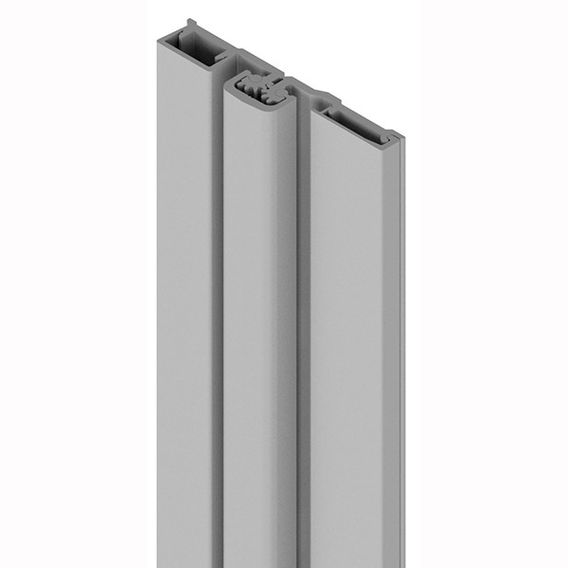

NGP HD5700 Continuous Geared Hinge, Full Surface
SKU:NGP HD5700
$271.80-$416.70
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
National Guard Products' Continuous Geared Hinges are specially designed involute intermeshing gears. Proprietary Teflon infused, self-lubricating, wear resistant bearings for smooth operation. Fire-rated 90 minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2".
Warranty Information
Limited Lifetime
Specifications
- BAA CompliantYes
- Country of OriginUSA
- Door Thickness1-3/4" to 2-1/4"
- Doors1/16" Door Inset
- GradeGrade 1
- Hinge TypeContinuous Geared Hinge
- MaterialAluminum Alloy 6063-T6
- Max. Door Weight600 lbs.

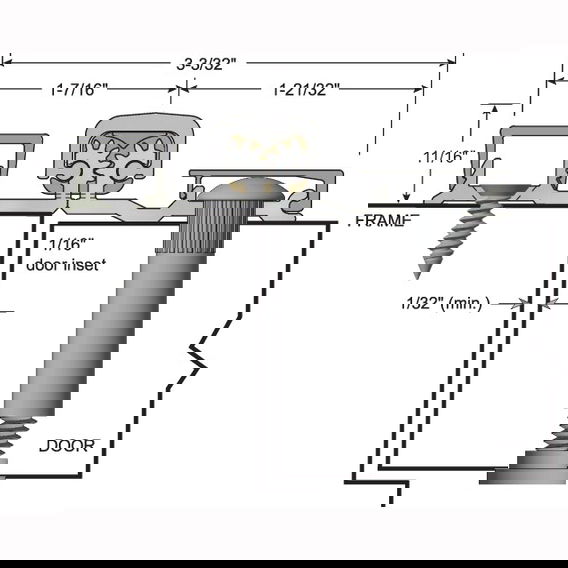

- Mounting LocationHinge attaches on 1-21/32" of door and 1-9/16" of frame
- Mounting StyleFull Surface
- Rated Opening CompliantYes
- StandardsUL Listed UL10C, ANSI/BHMA A156.26
- Unit of MeasureEach
- Width3-1/16" (fully open)
