Product Overview

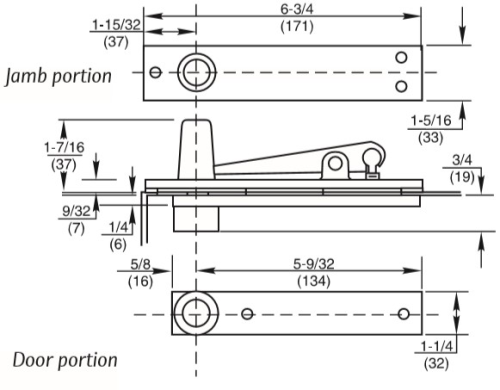

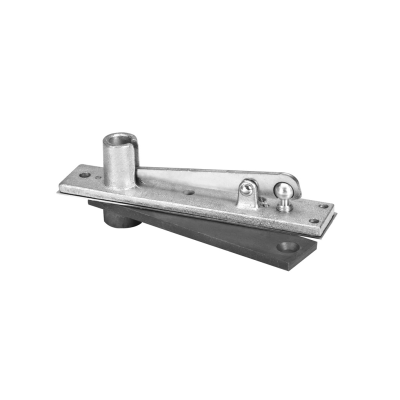

Fully concealed, center hung top pivot. Standard duty is top pivot for 370 and 117-3/4 pivot sets. Also used for 28, 30, 40 and 50 series floor closers. Heavy duty is top pivot for pivot set H117-3/4, also used for floor closer series H28 and H40. Walking beam-type pivot: 1/2" (13mm) diameter pivot pin (standard) or 11/16" (17mm) diameter pivot pin (heavy) with 3/4" (19mm) engagement. Oil-impregnated sintered bronze bushing. Heavy option includes heavy duty needle bearing.
Warranty Information
2 Years Limited
Specifications
- Country of OriginUSA
- Device TypeWalking beam type pivot
- Door Thickness1-3/4" (44 mm)
- Fire RatedNon Rated
- HandNon-Handed
- Mounting LocationTop of Door
- Mounting StyleFully Concealed
- Pivot TypeCenter Hung, Top Only
- Rated Opening CompliantNo
- ScrewsFurnished with wood and machine screws
- StandardsIn compliance with ANSI/BHMA A156.4 Standards
- TypeCenter Hung, Fully Concealed
- Unit of MeasureEach
- Use WithStandard Top Pivot for 370 and 117-3/4 / Also Floor Closer Series 28, 30, 40 and 50
