Product Overview

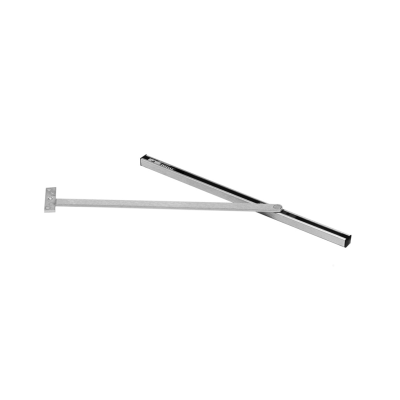

Checkmate adjustable, standard duty overhead stops and holders are used to extend the life of the interior door, frame and any door closing devices. Doors may be single or double acting. Heavy shock absorber spring provides 5-7 degrees compression before dead stop.
Resources
Warranty Information
2 Years Limited
Specifications

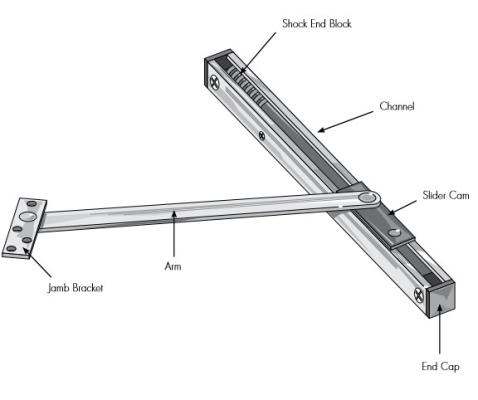

- Additional InformationDurable slider cam and shock block
- ApplicationModerate traffic, medium weight doors
- Country of OriginUSA
- DesignSlide Track, 3/4" Square Channel
- Door Thickness1-3/4" (44 mm)

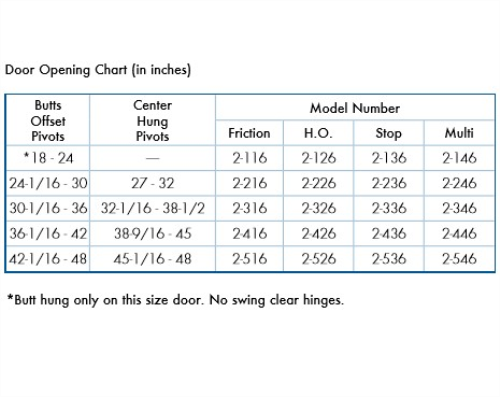

- Door Width30-1/16 - 36" door opening for Butts/Offset Pivots OR 32-1/16 - 38-1/2" door opening for Center Hung Pivots
- DoorsOpening, 110 degree maximum
- Duty Weight/ClassStandard Duty
- FastenersComplete screw packet for installation in wood or metal door and frame
- Fire Rated180 Min
- HandNon-Handed
- Includes5012PKG (adapter kit) included
- MaterialSteel
- Mounting LocationJamb bracket is mortised into the frame and the channel mortised into the top of the door
- Mounting StyleConcealed
- Rated Opening CompliantYes
- SeriesCheckmate Stops and Holders, Concealed Mount, 2 Series
- StopHeavy shock absorber spring provides 5-7degree compression before dead stop
- TypeConcealed Overhead
- Unit of MeasureEach
- Use WithInterior Doors
- Weight2
