Product Overview

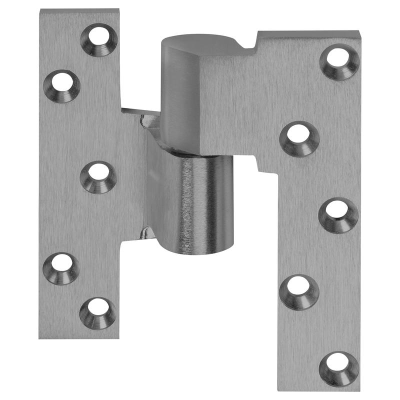

This intermediate pivot with a 3/4" offset is designed for use when frame conditions do not allow standard top pivot, it maintains door alignment and aids in installing floor closers and bottom pivots. It is lateral load-bearing with a heavy-duty needle bearing and full mortise. Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot; each additional 30" (762mm) warrants another intermediate pivot.
Resources
Warranty Information
2 Years Limited
Specifications
- Additional InformationDoors 60-90"H should use one intermediate pivot; for each additional 30" use another intermediate pivot
- Bearing TypeLateral Load-Bearing
- Country of OriginUSA

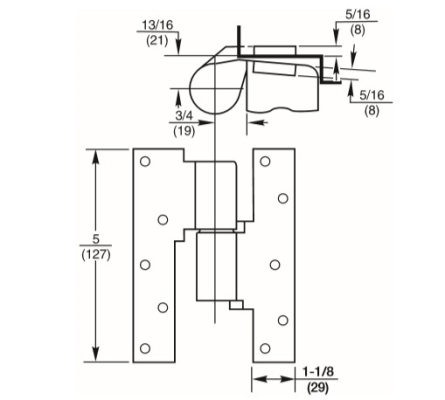

- Device Type3/4" Offset
- Door Thickness1-3/4"
- Fire RatedNon Rated
- Height5" (127mm)
- Hinge PrepDoor edges must be beveled in 1/8" in 2"
- Mounting LocationDoor Jamb
- Mounting StyleFull Mortise
- Pin TypeHeavy duty needle bearing
- Pivot TypeOffset Intermediate
- Rated Opening CompliantNo
- ScrewsFurnished with wood and machine screws
- StandardsIn compliance with ANSI/BHMA A156.4 Standards
- TypeHeavy Duty
- Unit of MeasureEach
