Product Overview

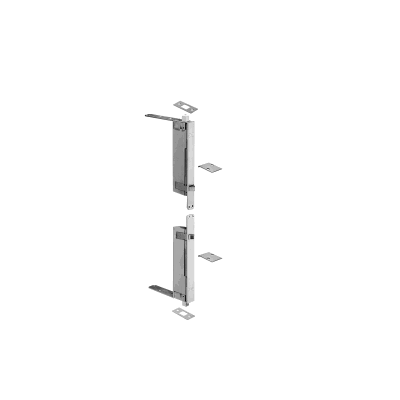

Automatic flush bolt for wood doors labeled B, C, D and E up to 4'w x 8'h. Fully automatic, opening active door retracts top and bottom bolts. Override feature prevents damage to door or bolt if bolt head is blocked from entering strike. Bolt head rods are adjustable up to 1/2". Thermal lock automatically locks the inactive door under high heat conditions due to fire.
Specifications
- ApplicationFor Wood Doors labeled B, C, D & E
- BoltBolt head rod is adjustable up to 1/2"
- Device TypeTop & Bottom, Automatic
- Door Heightup to 8'
- Door MaterialWood
- Door Widthup to 4'
- Fasteners(10) #8 x 3/4" Flat Head Combo Screws, (4) #8-32 x 1/2" Flat Head Machine Screws, (6) #10 x 1" Flat Head Wood Screws, (2) #6-8 Plastic Anchors
- HandNon-Handed
- MaterialBrass/Stainless Steel
- Rated Opening CompliantYes
- Size1" x 8-1/2"
- Unit of MeasureEach
- Weight2.9
