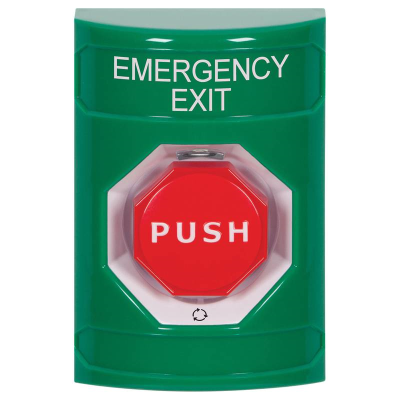

Safety Technologies SS2109 Stopper Station, Turn-to-Reset, Green
SKU:SS2109EX-EN
$82.20
$82.61
Out of stock
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
These ADA Compliant, multipurpose push button switches cover a wide range of applications both indoors and outdoors. They are called stopper stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation.
Specifications
- ADA CompliantYes
- Additional InformationRated for over 100,000 operations
- ApplicationIndoor/Outdoor
- Button IlluminationLED
- Button TextPUSH
- ColorGreen
- Contact RatingTwo (2) Form "C" contacts, DPDT, rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC
- CoverNone
- Device TypePneumatic push button activation
- Height4.87"
- LightsLED illuminates green, red or white
- Mounting StyleSurface
- Operating Temperature-40 to 250 degrees F
- RelayTurn to reset
- StandardsUL/cUL File No. S7255, CSA C22.2 No. 205
- TypeStopper Station
- Unit of MeasureEach
- Voltage12-24VAC/VDC
- Width3.25"
