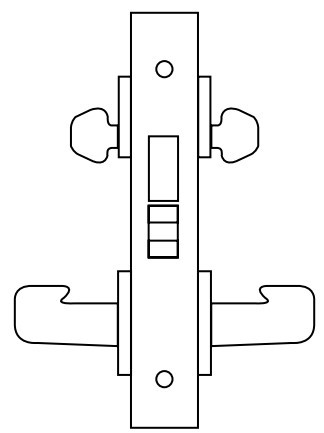

Sargent 8200 Series Heavy Duty Mortise Lockset, Security Deadbolt (8249) Function

Sargent

Sargent 8200 Series Heavy Duty Mortise Lockset, Security Deadbolt (8249) Function

SKU:SAR 8249

$919.35-$1,761.92
(No Reviews yet)
Write a review
Reset Selections
Product Overview
The 8200 series mortise lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable-far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing-for additional resistance against vandalism and unauthorized entry. Patented design and construction. Available in 60 different functions, including electromechanical, security and monitoring. UL-cUL listed for three hour fire doors and windstorm applications. Pre-assembled components make installation fool-proof. **Additional options may be available, inquire via Chat.**

Resources

Warranty Information

10 Years Limited

Specifications
  • ActionKey from either side retracts and projects deadbolt. Key from either side retracts latchbolt. Trim inside & outside are locked only when deadbolt is projected.
  • ADA CompliantYes
  • Additional InformationNot recommended for use on any door used for Life Safety egress
  • BAA CompliantYes
  • Backset2-3/4" (70mm)
  • BoltStainless Steel Latchbolt
  • Bolt Throw Length3/4" (19mm)
  • Country of OriginUSA
  • Depth4-3/32" Case
  • Door Thickness1-3/4"
  • Duty Weight/ClassHeavy Duty
  • Faceplate Height8" (203mm)
  • Faceplate Width1-1/4" (31mm)
  • Fire Rated180 Min
  • FunctionSecurity Deadbolt
  • GradeGrade 1
  • Handle TypeLever
  • Height5-31/32' Case
  • IncludesHardware
  • Lock PrepMortise
  • MaterialCase: 12 gauge heavy duty wrought steel, zinc dichromate plated, 1/8" (.125") cold-rolled steel inside front, wrought steel hubs and high carbon steel spring cartridge
  • Rated Opening CompliantYes
  • SeriesSargent 8200 Series Mortise Locksets
  • StandardsANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1
  • Stiles'4-1/2" (114 mm) Minimum
  • Strike4-7/8" Curved Lip, #82-0110
  • Strike StandardANSI
  • Through BoltsYes
  • Unit of MeasureEach
  • Weight6.1
  • Width24/32" Case
