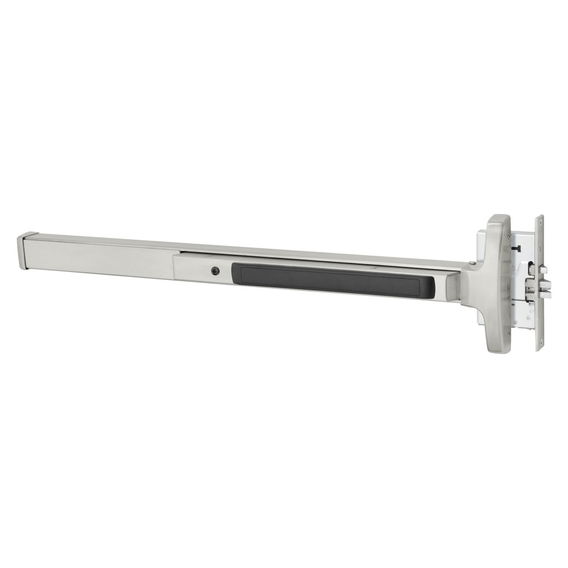

Sargent 8310 Narrow Mortise Lock Exit Device, Exit Only Function
SKU:SAR 8310
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility.
The 8300 series is designed for standard width stiles with a narrow design look. Through-bolted trim for quiet operation and security.
**Additional options may be available, inquire via Chat.**
Warranty Information
5 Years Limited
Specifications
- ActionNo outside operation (No Cylinder); ET Control (where included) is used as Pull Only
- ApplicationFor Schools, Offices and Hospitals
- BAA CompliantYes
- BoltBrass Nickel Plated, Anti-Fricton
- Bolt Throw Length3/4" (19mm)
- Country of OriginUSA
- CylinderNone
- DesignLexan Push Pad Touchbar, Standard End Cap
- Device TypeMortise Lock
- Door MaterialWood or Metal
- Door Thickness1-3/4"
- Duty Weight/ClassHeavy Duty
- Function10 Exit Only, ANSI 01/02
- GradeGrade 1
- Includesno electric option
- Mounting StyleSurface
- Projection3" (76mm) Pushbar Neutral; 2-1/8" (54mm) Pushbar Depressed
- ScrewsWood and Machine Screws
- SeriesSargent 80 Series Exit Device
- StandardsANSI/BHMA 156.3
- Stiles4-1/2" minimum width
- Strike NumberC908
- Strike StandardANSI Prep A115.1
- Strike TypeStandard Black Nylon Coated
- TypeWide Stile Pushpad
- Unit of MeasureEach
