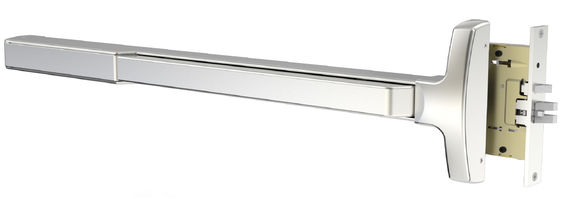

Sargent PE8310 Narrow Stile, Mortise Exit Device, Exit Only
SKU:SAR PE8310
$2,701.33-$4,311.51
Out of stock
Reset Selections
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview
The Sargent PE80 Series is the next generation of exit devices. Designed with innovation in mind, the powerful and exquisite exit device introduces new and enhanced features as compared to other models across the industry. Ideal for environments that require maximum strength and durable security solutions, all configurations (rim, mortise, surface vertical and concealed vertical rod) exceed ANSI/BHMA Grade 1 requirements. ** Additional options may be available, inquire via Chat. **
Warranty Information
10 Years Limited
Specifications
- ActionNo outside operation (No Cylinder)
- ADA CompliantYes
- Additional InformationNo catch points (see catalog for details)
- BoltBrass Nickel Plated Latchbolt
- Bolt Throw Length3/4" (19mm)
- DesignFlush End Cap
- Device TypeMortise Lock
- Dogging OptionsHex Key Dogging or Less Dogging if Fire Rated
- Door Height120" (max)
- Door MaterialWood, Metal, Aluminum
- Door Thickness1-3/4"
- DoorsSingle door or Double door with Mortise/SVR configuration
- Duty Weight/ClassHeavy Duty
- FastenersNot visible on rail assembly
- FunctionExit Only
- GradeGrade 1
- Mounting StyleSurface
- Projection2.88"
- ScrewsWood and Machine Screws
- SeriesSargent PE80 Series Exit Device
- StandardsANSI/BHMA A156.3
- Stiles2" Minimum
- StrikeBlack Nylon Coated
- Strike NumberC908
- Trimnot included
- TypeNarrow Stile Pushpad
- Unit of MeasureEach
