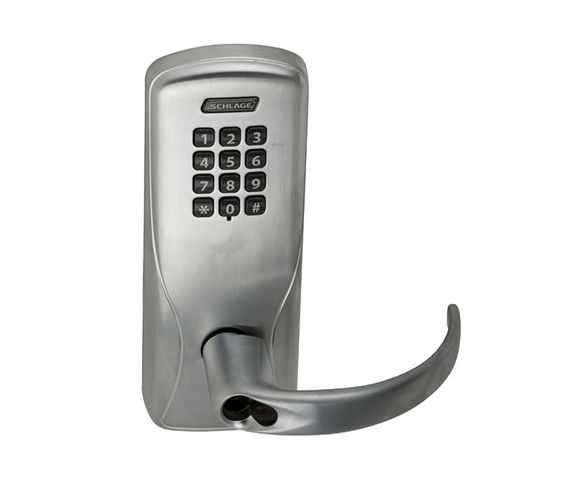

Schlage Electronics CO-100 Series Exit Device Trim

SKU:SCHE CO100993

$722.34-$870.89
Reset Selections
Product Overview

The CO Series provides ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. CO-100 models are designed for use as easy to manage, low maintenance locks that use 3-6 digit PIN codes as credentials. Administrator level users can program it right at the door to add or delete user PIN codes or change preferences or functions at any time. Mechanical key override is standard and compatible with cylinders from Schlage and other popular brands. The CO-100 from Schlage is versatile enough to use anywhere. In the classroom/ storeroom function, it is fully outdoor rated and can be used for gate or breezeway access. CO-100 privacy function locks can be programmed to show occupancy indication for applications such as dressing areas or bathrooms. And office function locks can be set up for remote release making them perfect for vestibules or waiting rooms.

**Additional options may be available, inquire via Chat.**

Warranty Information

1 Year Limited

Specifications
  • Battery4 AA Batteries (Standard Off the Shelf: Included) Up to 2yr Battery Life
  • CylinderSFIC Prep Less Core
  • Fire RatedNon Rated
  • FunctionClassroom/Storeroom
  • GradeGrade 1
  • Handle TypeLever
  • Keypad TypeStandard 10-Key
  • MaterialPressure Cast Zinc, Plated (lever)
  • Number of Users500
  • Operating Temperature-31-151 deg F (-35-66 deg C)
  • PowerBattery
  • Projection3.69" Exterior; 1.02" Interior
  • Rated Opening CompliantNo
  • Reader TechnologyKeypad
  • SeriesCO-100 Series Exit Trim

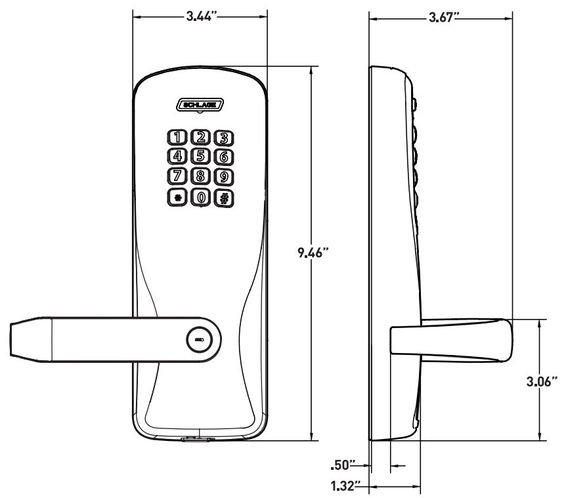

  • Size9.46x3.44" Exterior
  • StandardsUL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA A156.3
  • TypeElectronic Exit Device Trim
  • Unit of MeasureEach
