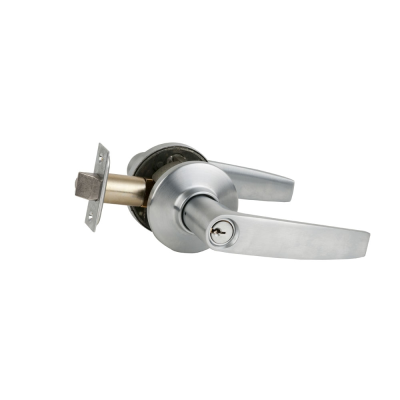

Product Overview
S Series are interior-use, Grade 2 locks featuring both keyed and non-keyed functions. They are ideal for light commercial applications like small hotels, laboratories and office tenant space, as well as apartment buildings. Heat treated locking components add strength while Schlage solid levers in plated zinc are engineered for long life and optimum durability. The four popular lever designs are ADA compliant with options for tactile warning. Heat-treated steel locking components for extra strength. Independent heavy-duty lever torsion springs for durability and long life. Everest 29 patented keys standard for commercial applications.
Warranty Information
3 Years Limited
Specifications
- ActionOutside lever locked and unlocked by key or by turn-button on inside lever. Inside lever always unlocked.
- ADA CompliantYes
- ApplicationFor Interior, Retrofit Applications
- Backset2-3/8" to 2-3/4"
- BoltChrome Plated Brass, Deadlocking
- Bolt Throw Length1/2" (13mm)
- Country of OriginMexico
- Device TypeLight Traffic, With Deadlatch
- Door Thickness1-3/8 to 2" (35 to 51 mm)
- Dust BoxPlastic
- Face ShapeSquare Corner, Beveled
- Faceplate Size1" x 2-1/4" (25 mm x 57 mm)
- FunctionEntrance Lock
- GradeGrade 2
- HandNon-Handed
- IncludesHardware
- KeywayKeyed
- Latch Number16-203
- Latch TypeDeadlatch
- Length4-1/4" (108mm) Lever
- Lock ChassisTubular Construction. Zinc with Steel Cover
- Lock Face Size1-1/8" x 2-1/4"
- MaterialPressure Cast Zinc Lever, Wrought Brass Rose
- Projection2-1/2" (64 mm)
- Rose/Escutcheon Size2-9/16"
- SeriesSchlage S Series Tubular Locks
- StandardsANSI/BHMA A156.2-2011, Exceeds 400,000 ANSI Cycles, Meets FF-H-106C
- Strike1-1/8" (29 mm) Lip to Center
- Strike Height2-3/4" (70mm)
- Strike Number10-001
- Strike TypeT-Strike
- Strike Width1-1/8" (28.5mm)
- Unit of MeasureEach
- Weight5
