SDC EntryCheck 923 Narrow Indoor/Outdoor Self-Contained Keypad w/ Prox Reader
SKU:923P
$606.00
$472.68
- Chat With An Expert
- Resources & Tools
- Return Policy
- Request Volume Pricing
Product Overview

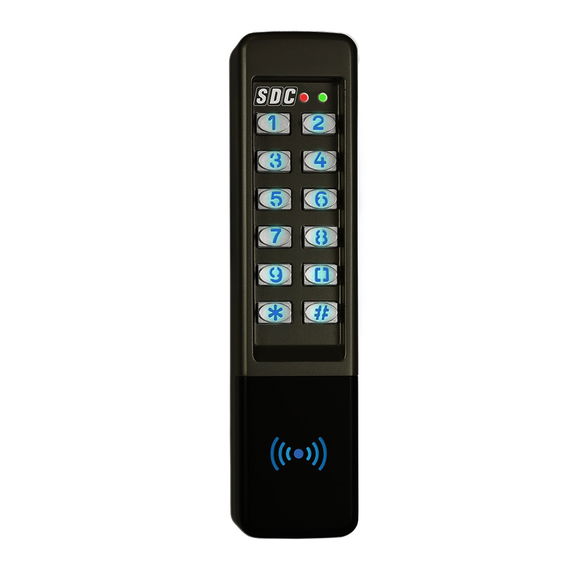

SDC's EntryCheck™ 923 series narrow indoor/outdoor standalone digital keypads are designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.
Warranty Information
5 Years Limited
Specifications
- Additional Information3 user modes - PIN or card, card only, card and PIN
- Country of OriginUSA
- Current Rating30 mA Typical/150 mA Maximum
- Depth1-3/8"
- FunctionControl access of a single entry point for facilities
- Hardware FinishBlack Powder Coat
- Height7-5/16"
- Keypad Type12-key illuminated, moisture-resistant keypad
- MaterialDie Cast Metal
- Mounting LocationMullion or Frame
- Mounting StyleNarrow Surface
- Number of Users500
- Operating Temperature-4F to +140F (-20C to +60C)
- Output CurrentRelay 1 - SPDT 5 Amps @ 30VDC, Relay 2 - SPDT 2 Amps @ 30VDC, Switch to Common Outputs 3,4 - 100mA @ 30VDC
- PowerHardwired
- Projection1-1/2"
- Unit of MeasureEach
- Voltage Rating12/24 VAC/DC
- Weight1.65 lbs
- Width1-3/4"
