Product Overview

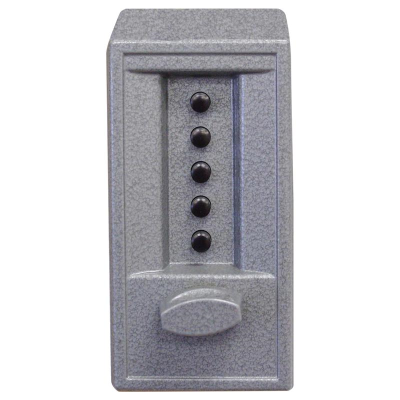

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. Simplex 6000 provides fully mechanical exterior access by combination, while allowing free egress at all times by interior knob. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Resources
Warranty Information
1 Year Limited
Specifications
- ADA CompliantNo
- ApplicationWood or Metal Doors, Indoor or Outdoor
- Bolt Throw Length1/2" (13mm)
- Device TypeCombination Entry, Thumbturn, Cylindrical Latch
- Door Thickness1-3/8 - 2-1/4"
- Fire Rated180 Min
- HandField Reversible
- Handle TypeThumbturn/Lever
- IncludesInstallation manual, full-scale template, combination change tool, and required installation hardware
- Keypad Type5 Button Vandal Resistant
- KeysSolid Metal
- Programmer/ProgrammingLock is easily programmed via keypad without removing lock from the door
- Projection2-9/16" Exterior; 2-13/16" Interior
- Rated Opening CompliantYes
- SeriesSimplex 6200 - Cylindrical, Thumbturn

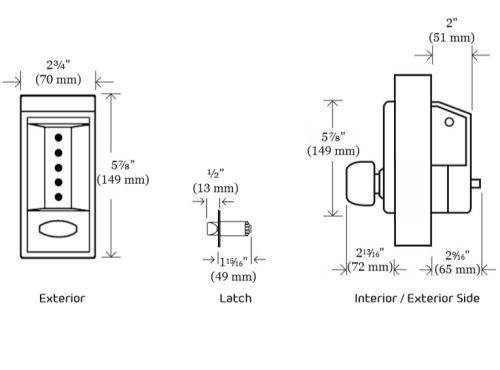

- Size2-3/4"W x 5-7/8"H (exterior), 5-7/8"H (interior)
- Stiles5" Minimum Recommended
- TypeCylindrical Lock
- Unit of MeasureEach
