Product Overview

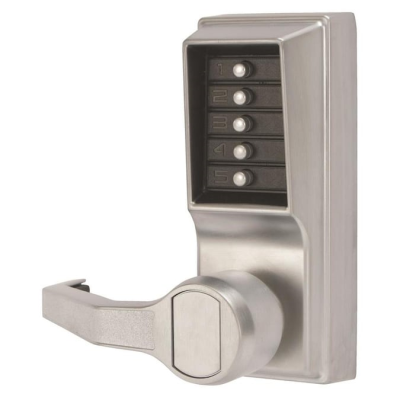

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Warranty Information
3 Years Limited
Specifications
- ADA CompliantYes
- ApplicationIndoor or Outdoor
- Backset2-3/4" (70mm)
- Country of OriginUSA
- Device TypeMechanical, Cylindrical Lock
- Door MaterialWood or Metal
- Door ThicknessPre-assembled to accommodate 1-5/8" (41mm) to 1-7/8 (48mm) doors. Hardware included to cover door thickness applications 1-3/8" (35mm) to 1-1/2" (38mm) and 2" (51mm) to 2-1/4" (57mm)
- Duty Weight/ClassHeavy Duty
- Fire Rated180 Min
- GradeGrade 1
- Handle TypeLever
- IncludesInstallation manual, full-scale template, combination change tool, and required lock installation hardware only
- Keypad Type5 Button Vandal Resistant
- KeysSolid Metal
- Programmer/ProgrammingLock is easily programmed via keypad without removing lock from the door
- Projection3-13/16" (exterior), 3-1/4" (interior)
- Rated Opening CompliantYes
- SeriesSimplex L1000 - Mechanical Lock, Lever

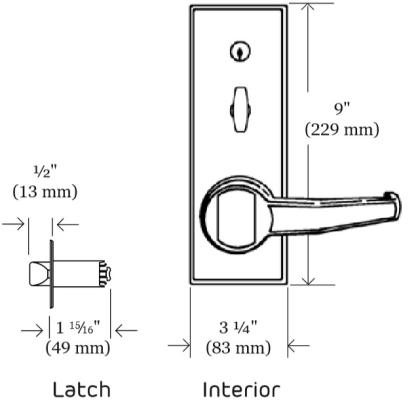

- Size3-1/8"W x 7-3/8"H (exterior), 3-1/4"W x 9"H (interior)
- StandardsUL Listed, cUL Listed
- TypeCylindrical Lock
- Unit of MeasureEach
