Product Overview

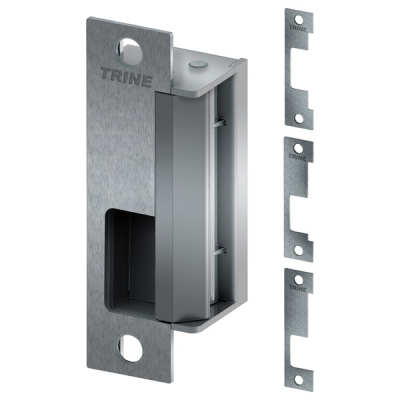

The patented 4100 electric strike is designed to cover 90 percent of cylindrical and mortise lock configurations (without deadbolt)with four of the most used faceplates for easy installation. Class A, 3 hour fire rated single door/frame configuration; WH recognized for UL10C, Fire Tests of Door Assemblies, void when using fail safe action. The 4100 low profile electric strike has a 1-3/8" shallow backset allowing it to be used in 2" fire rated frames with 1/2" sheetrock ingress.
Warranty Information
1 Year Limited
Specifications
- ActionIntermittent Duty, Buzz Sound with AC; Intermittent/Continuous Duty, Silent with DC
- Additional InformationDurability - 1,000,000 Life Cycles
- BAA CompliantYes
- Backset1-3/8"
- Configuration/ConnectorsCentered/Custom
- Country of OriginUSA
- Duty Weight/ClassHeavy Duty
- Faceplate Size1-1/4" x 4-7/8" (x4)
- GradeGrade 1
- HandNon-Handed
- Holding Force3250 lbs.
- IncludesElectric Strike, Faceplates (4), Mounting Hardware
- Keeper Size25/32"W x 3/4"D x 1-3/4"H
- Operating Voltage12-24 VAC/DC
- PowerHardwired
- Rated Opening CompliantYes - Only in Fail Secure
- SeriesTrine 4100 Series Electric Strikes
- StandardsUL10Cs, UBC 7-2, CAN4 S104, NFPA 252 - Issue: 1999/01/01, UL Listed-1034, UL294, ANSI A156.5 - 1992
- Switch TypeNone
- Unit of MeasureEach
- Use WithCylindrical and mortise lock configurations (without deadbolt)
